PYG-LA00

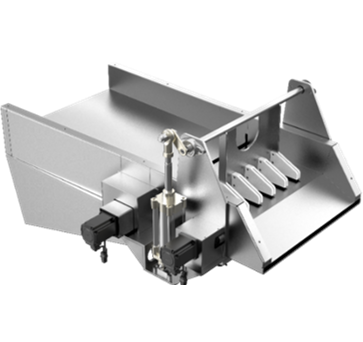

Unpacking device

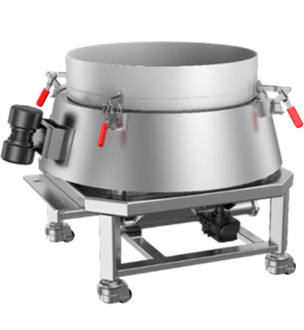

Vibrating screen filter

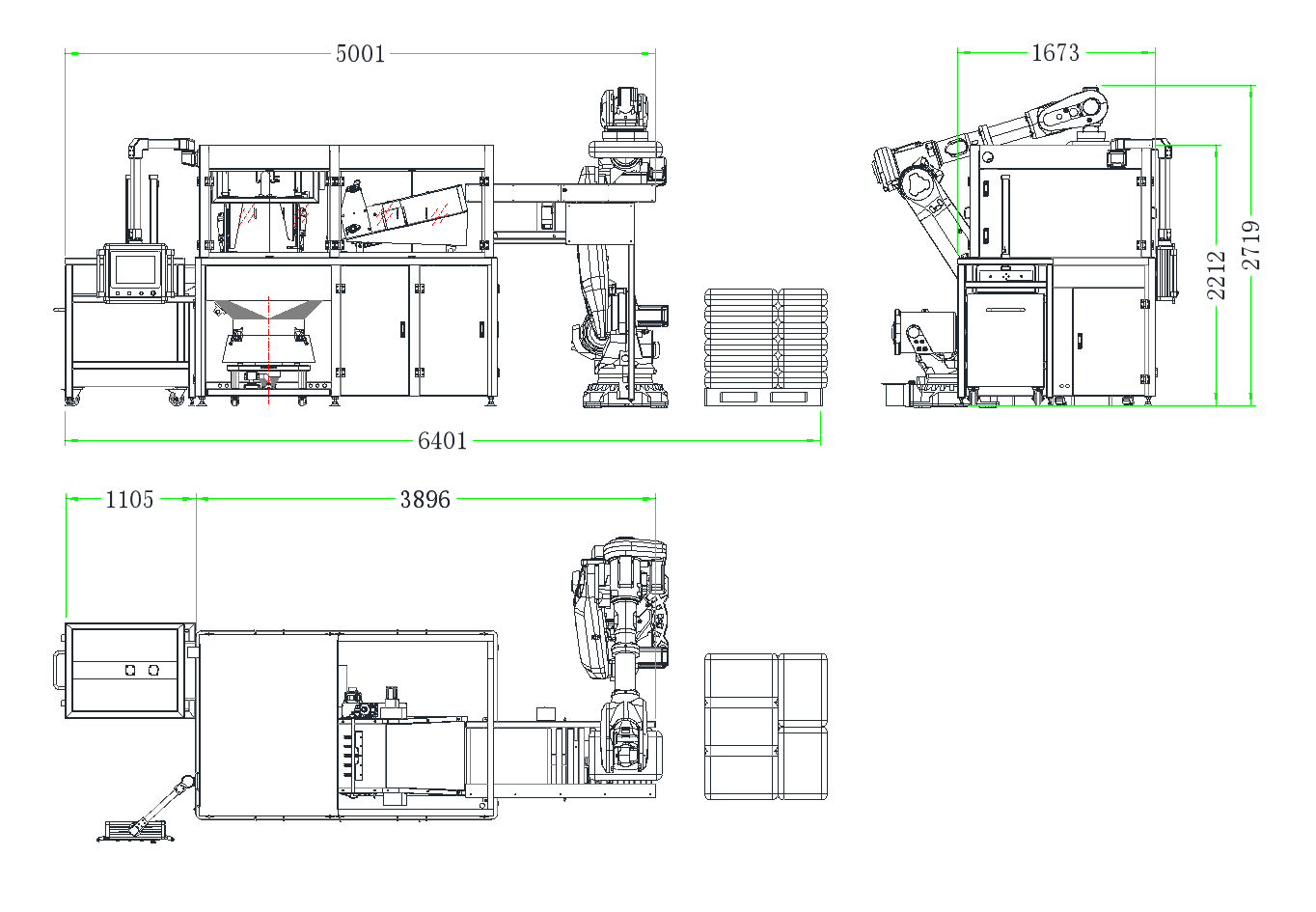

Layout diagram

Technical parameters

Serial numberProject NameParameter/Specification
1Unpacking ability80 to 120 packs per hour
2Bag typePE bags, cowhide bags, woven bags
3Bag-cutting mode5 kai vertically and 1 kai horizontally
4Specification (length * width * height mm)3127*1630*2455
5Weight1500kg (Subject)
6Dismantling efficiency98%
7Total power4kw
8Control modePLC control unit +MES system
9Dust removal methodCentral dust collection
10Power supply voltage380V/50Hz Control section:220V/50Hz
11Compressed air0.3m³/minIt should be dry and free of water
12Usage environment0-30℃Relative humidity: Based on no condensation

Overview

    The intelligent small bag unpacking system is an intelligent system under the architecture management of automation, digitalization, precision, dust-free and high efficiency based on artificial intelligence and MES data analysis technology.


Features

    ★ Safety and environmental protection: Closed unpacking, centralized dust treatment

    ★ High unpacking efficiency: The unpacking speed can reach 80-120 packs per hour

    ★ Fully automatic operation: Small floor space, unmanned continuous production

    ★ Wide application range: It can handle various basic materials and is suitable for packaging bags of all specifications and materials. It can meet the requirements of toxic, flammable, highly corrosive, high-dust and other working conditions that are difficult for personnel to come into contact with

    ★ Easy to maintain: Modular combination, simple mechanical structure, and no blind spots in design




Working principle

    The bag-picking robot grabs the materials from the pallet onto the leveling conveyor to level the material bags. Then it is lifted to the entrance of the bag unloader. During the gravitational fall of the material bags, the built-in cutting device of the equipment breaks the material bags. The automatic bag shaking device ensures that the materials are fully discharged. After being sieved by the vibrating screening machine, the materials are conveyed to the next process. The waste bags are flipped into the waste bag collection area by the automatic bag shaking device and then fall into the waste bag collector by pneumatic pushing, completing the entire intelligent feeding process.
